AQ Conversions

HP2 Rallye

grid-content

Intro




AfricanQueens

HP2
Rallye

Fairing & Tank:

  • Carbon-fairing kit "Rallye"
    incl. Aluminium subframe and
    Ellipsoid headlights (Xenon optional)
  • Rear and front mudguard "Rallye"
  • 7 Litres rear tank


Chassis:

  • "Sachs 48" USD forks
  • Öhlins rear shock absorber
  • AQ - Rally foot pegs
  • Excel wheel set with Aluminium hubs
  • "Reikon" handelbar incl. risers


Protection & Comfort:

  • Custom seat with quick release and two-colour suede leather cover
  • Aluminium oil sump guard
  • Various protective covers
  • Aluminium pannier system


Motor & Exhaust System:

  • Akrapovic "Titan"
    exhaust system
  • Dynojet Power Commander III

AfricanQueens HP2 Rallye -
Competetive desert racer and dependable travel companion in one bike.

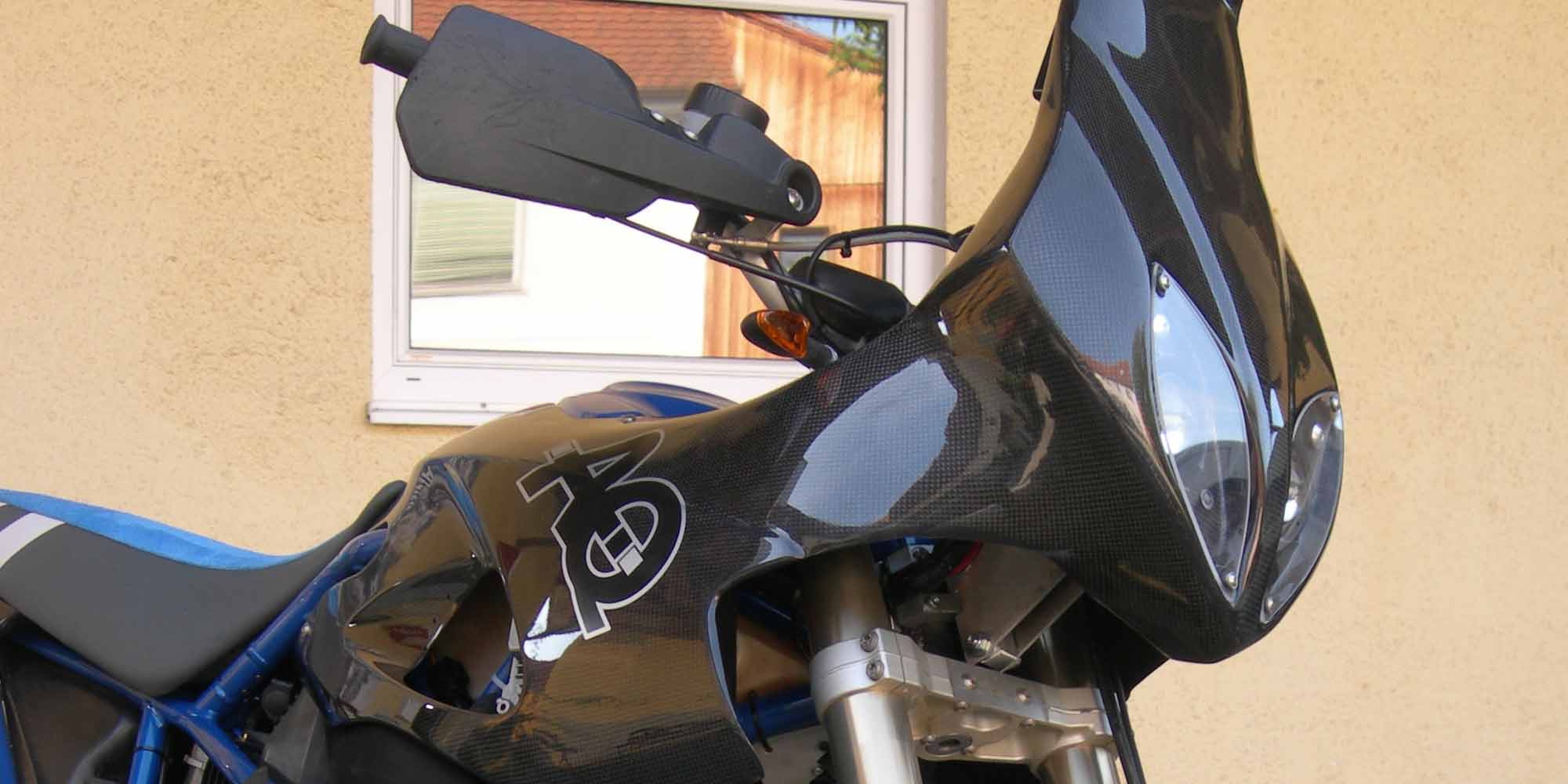

A dynamically styled, feather-light carbon fairing with modern dual-headlight technology combined with a sleek rear and a low-set front mudguard of the same material enhance the HP2 for fast and energy-preserving handling on long-distance rides - no matter if at racing or travel speeds.

A 7-litre rear tank, space-efficiently placed in the empty frame triangle below the seat, is coupled to the existing tank system by an additional pump. It increases the total tank capacity to 20 litres and thus refuel autonomy by more than 50 percent.

The chassis is trimmed to uncompromising race standards. Lightweight, almost indestructible Excel rims on milled aluminium hubs and the finest, fully adjustable suspension elements from Öhlins and Sachs help to significantly exceed the stability and reserves of the original chassis.

Akrapovic's titanium exhaust system, which has been optimised for years under real racing conditions, does not only improve overall performance but also lowers the bike's weight by a total of 4.70 kg.

The HP2 Rallye conversion can be individually customised to meet diverse requirements:

  • More comfort on long journeys thanks to seat upholstery, wind shields and handlebar risers
  • Solid and off-road suitable luggage solutions
  • Tripmasters, protective covers and much more
  • Further performance enhancement by K&N air filter and Dynojet Power Commander
  • AfricanQueens exhaust systems Racing or EC-certified:

Individual Configurations

This conversion can be individually configured according to customer requirements for various use profiles.

You'll find more information on the available parts & kits here:

info

Technical Specifications


MODEL

manufacturer

BMW, AfricanQueens

designation

HP2 Rallye





ENGINE



engine type

2 cylinder flat twin / 4 stroke

displacement

1170 cc

compression ratio

11:1

max. power output

105 h.p. / 77 kW at 7000 rpm

max. torque

115 Nm at 5500 rpm

max. speed

200 kph

induction

electronic fuel injection

cooling system

air / oil

fuel

four-star petrol / premium

starter

electric

gearbox

6-speed

ignition

electronic twin spark





CHASSIS

suspension front

"Sachs 48" USD-telescopic forks
285mm suspension travel

suspension rear

Öhlins shock absorber,
adjustable compression & rebound,
preload preset by spanner
250 mm suspension travel

seat height

94 cm

brakes front

305 mm hydraulic disc
with 4-piston caliper,
stainless steel braided lines

brakes rear

265 mm hydraulic disc
with 2-piston caliper,
stainless steel braided lines

wheel / tyre front

21 x 1.85 / 90/90-21

wheel / tyre rear

18 x 2.50 / 140/80 (90) - 18

tyre restrictions

non

wheelbase

1610mm

final drive

shaft drive

frame type

steel tube grating frame





WEIGHTS & CAPACITIES

tank capacity

20 Litres (front 13; rear 7)

dry weight

approx. 180 kg

kerb weight

approx. 200 kg

max. allowed total weight

380 kg

Photo Galleries


HP2 Rallye
I

HP2 Rallye
II

HP2 Rallye
III

HP2 Rallye
IV

HP2 Rallye
V


Parts & Kits





The HP2 Rallye conversion consists of several parts & kits and can be configured for various applications. This also allows for a step-by-step conversion of your own bike if required.



For personal advice or an offer tailored to your individual requirements please feel free to contact us:

Further information and prices for HP2 Rallye conversion parts can also be found here:

Press


Motorrad ABENTEUER

Issue 07/2012


Report:
AQ-BMW HP2 Rallye

ENDURO

Issue 09/2012


Test Report:
AQ-BMW HP2 Rallye
