Intro


CRF 1000R Africa Twin


After many years of abstinence, Honda finally stirred up the rally scene again with the CRF 450.
The current factory machine is the template for this conversion of Honda's brand new CFR 1000L Africa Twin. Through our rally kit, the Twin is visually and technically a rally bike, a real CRF 1000R!

The fairing kit made of ABS plastic with PiAA LED headlights is not only by appearance based on the HRC original, it also saves weight and provides enough space for a comprehensive, professional rally cockpit.

The chassis has been reworked for more suspension travel and damping reserves even in rough terrain. High-quality components can be adjusted by the pilot individually and precisely according to the current terrain requirements.

AQ's new AdventureSport stainless steel manifold and a weight-saving performance silencer allow the twin-cylinder to breathe freely, resulting in a stronger push of torque from low revs and a generally more vivid performance. For racetrack or adventure travel assignements, the catalytic converter is removable.

crf1000charticon

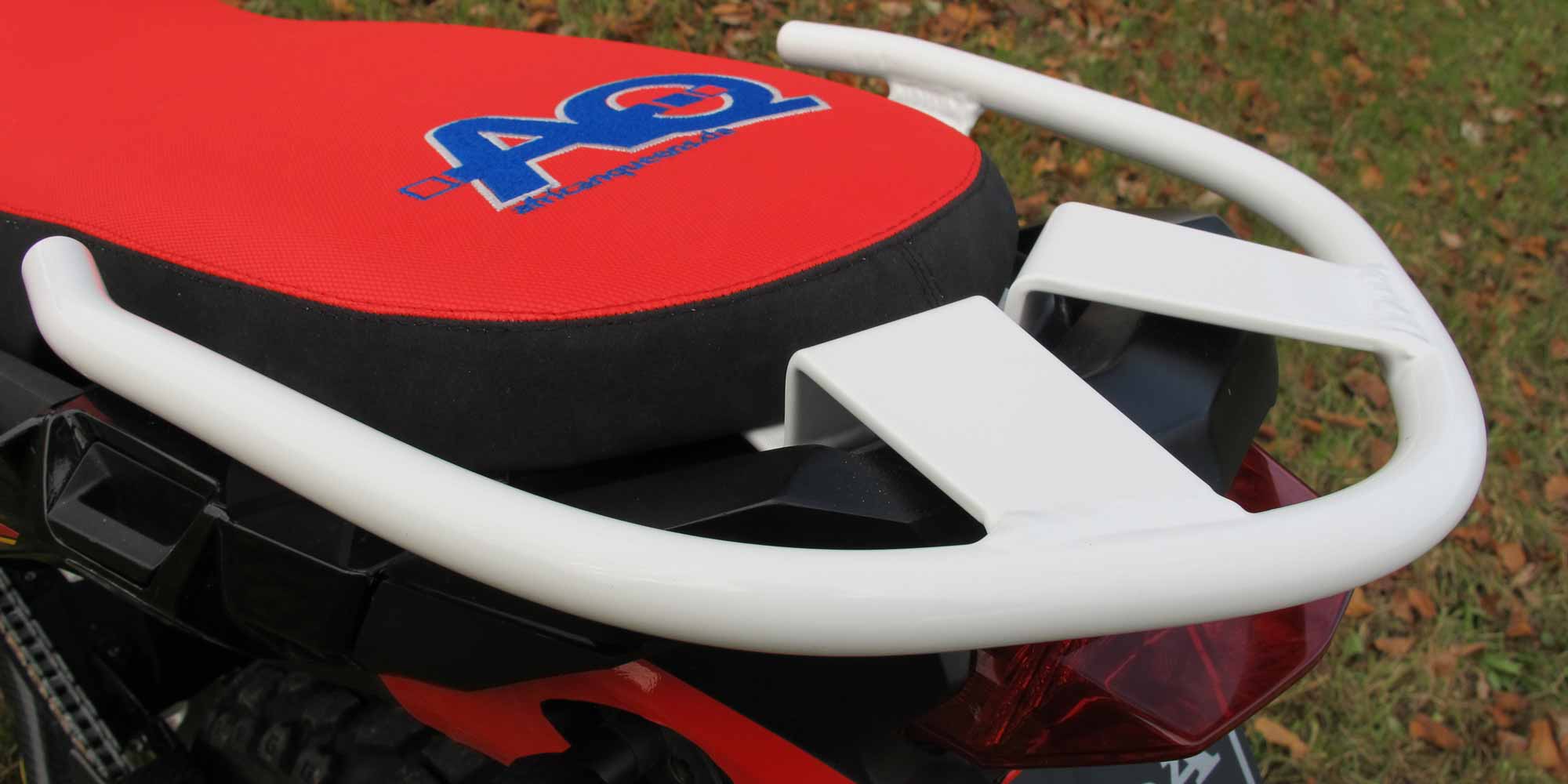

The concept is rounded off by a multitude of functional add-ons and details, such as the carbon engine guard, the rear steel tube handle, the one-piece sport seat and many more.


Individual Configurations

This conversion can be configured individually according to customer requirements or preferences. You'll find more information on available parts & kits here:

Engine & Exhaust

  • K & N airfilter
  • Aluminium radiator guards
  • Silicon coolant hoses
  • Kevlar "Race" clutch
  • Carbon engine side covers RX & LX
  • Carbon engine guard
  • Termignoni "Race" Titanium - complete exhaust system


Chassis:

  • Stock forks with AQ Race Cartrige System (+ 40mm)
    270 mm suspension travel
  • Öhlins TTX "Special Edition" Race shock absorber
  • Excel wheel set


Fairing & Cockpit:

  • AQ "Rallye Sport" fairing kit
    Fiberglass/Kevlar/Carbon-hybrid side panels
    Aluminium subframe for original or rally displays
    2 PIAA LED headlights, EC certified
  • Aluminium handlebar
  • Aluminium reinforced hand guards
  • Venhill quick action throttle grip
  • 2 x RNS Tripmaster’
  • Roadbook holder


Other:

  • AQ “Sport” foot pegs, CNC milled
  • Enduro front mudguard
  • AQ sport seat, one-piece
  • AQ "Race" rear fender conversion
  • Carbon tank covers
  • Carbon frame covers
  • Carbon swingarm covers
  • CNC milled footbrake & gear levers
  • CNC milled handbrake & clutch levers, adjustable
  • closed rear chain guide

Technical Specifications


MODEL

manufacturer

Honda, AfricanQueens

designation

CRF 1000R





ENGINE



engine type

parallel twin cylinder, 4 valve per cylinder, 4 stroke

displacement

998 ccm

compression ratio

10:1

max. power output

70 kW (95 h.p.) at 7500 rpm

max. torque

98 Nm at 6000 rpm

max. speed

200 kph

induction

PGM- FI fuel injection

cooling system

liquid cooled

fuel

two-star petrol / regular

starter

electric

gearbox

6 speed

ignition

electronic





CHASSIS

suspension front

Showa 45 mm USD telescopic forks
"AQ-Race" Cartridges
270 mm suspension travel

suspension rear

Öhlins TTX-Race n
adjustable compression & rebound,
preload preset by hydraulic
220 mm suspension travel

seat height

90 cm

brakes front

310 mm dual hydraulic disc brake
with Nissin 4-piston callipers,
stainless steel braided lines

brakes rear

256 mm hydraulic disc
with 2-piston calliper,
stainless steel braided lines

wheel / tyre front

Excel / Faba 21 x 1.85 / 90/90-21

wheel / tyre rear

Excel / Faba 18 x MT 2.50 / 140/80 (90) - 18

tyre restrictions

non

wheelbase

1575 mm +/- 10 mm

final drive

reinforced XW-ring sealed chain

final drive reduction

15 x 45

frame type

Steel semi-double cradle type with high-tensile strength steel rear subframe





WEIGHTS & CAPACITIES

tank capacity

18,8 Litres

dry weight

approx. 192 kg

kerb weight

approx. 210 kg

max. allowed total weight

423 kg

Photo Galleries


CRF 1000R Africa Twin
I

CRF 1000R Africa Twin
II

CRF 1000R Africa Twin
III

CRF 1000R Africa Twin
IV

CRF 1000R Africa Twin
V

CRF 1000R Africa Twin
Motorally Italia

CRF 1000R Africa Twin
Hellas Rally 2017

CRF 1000R Africa Twin
MA Offroad Test


Parts & Kits





The CRF 1000R conversion consists of several parts & kits and can be configured for various applications. This also allows for a step-by-step conversion of your own bike if required.



For personal advice or an offer tailored to your individual requirements please feel free to contact us:

Further information and prices for CRF 1000R conversion parts can also be found here:
